The Carbolite Gero HTF chamber furnace range is engineered for precision and performance, offering temperatures up to 1800°C. These furnaces are ideal for a variety of processes including sintering, annealing, calcination, and other thermal treatments. Each unit in the HTF range is built with high-quality materials and incorporates advanced thermal technology to ensure uniform heat distribution, optimal temperature control, and long-lasting performance.
Whether you're involved in research and development, quality control, or production in sectors such as ceramics, metallurgy, electronics, or materials science, the HTF chamber furnace range is designed to meet your specific requirements. With a focus on user-friendly operation, safety, and efficiency, these furnaces are equipped with intuitive controls, robust safety features, and energy-saving capabilities.
| 最高温度 1700, 1800°C | Control thermocouple Type B |
Configuration Bench mounted : 4, 5, 8 & 10 litre Floor standing : 27, 64,128, 165 litre | Furnace useable volume 1700°C: 5, 10, 27, 64,128,165 litre 1800°C: 4, 8, 27, 64,128, 165 litre |
Carbolite Gero's HTF furnace range is at the pinnacle of furnace design. The culmination of over 80 years of experience in thermal engineering; combining the latest technological developments with solid construction and high-quality components.
The HTF high temperature furnace range comprises 1700 °C and 1800 °C models.

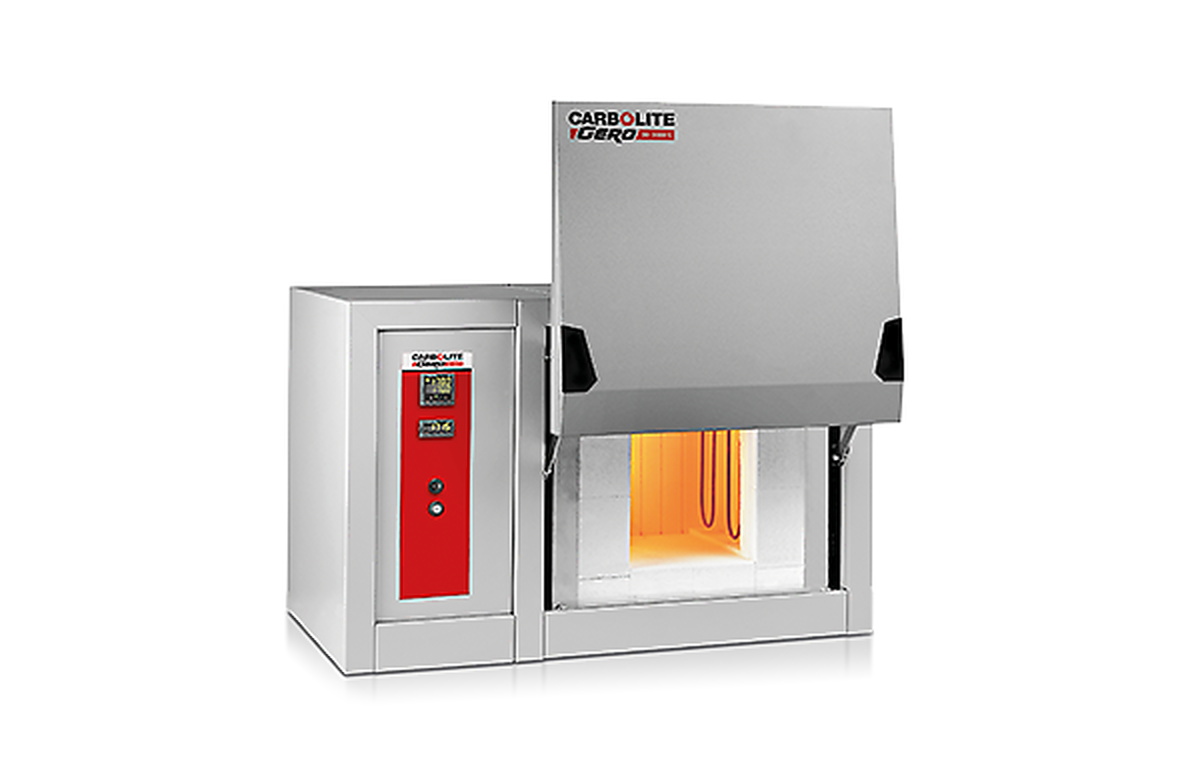

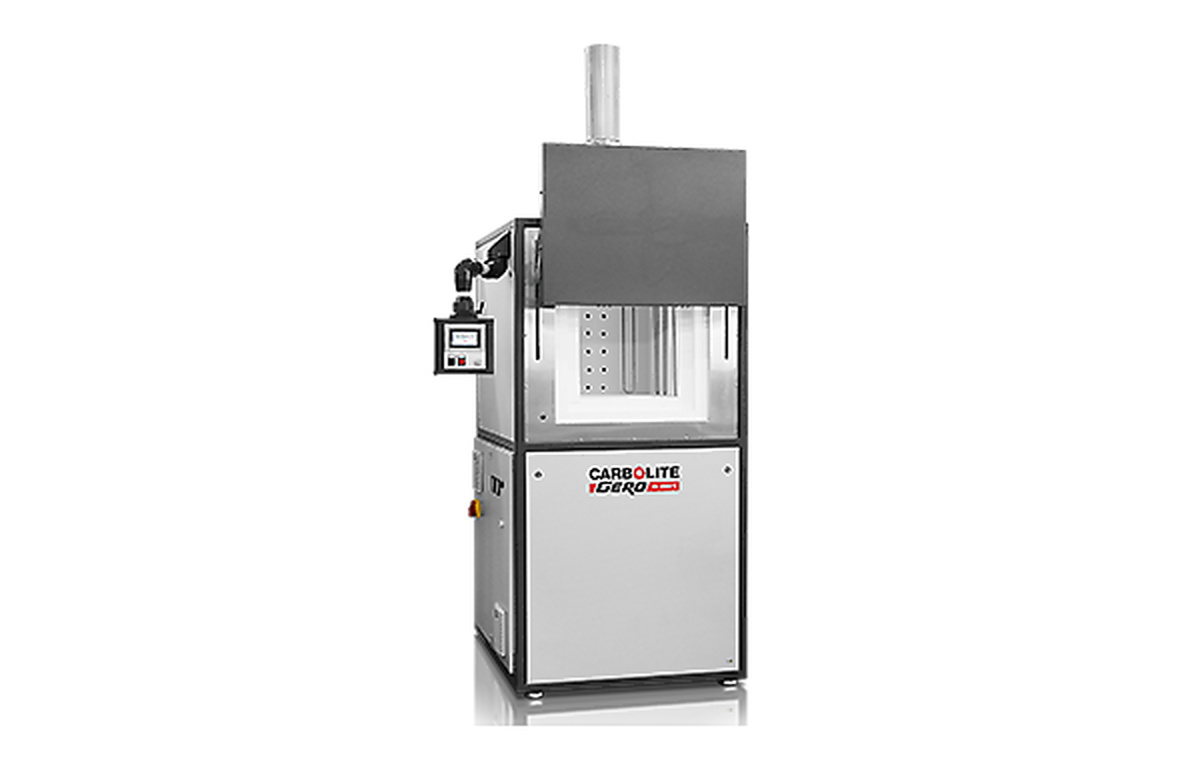

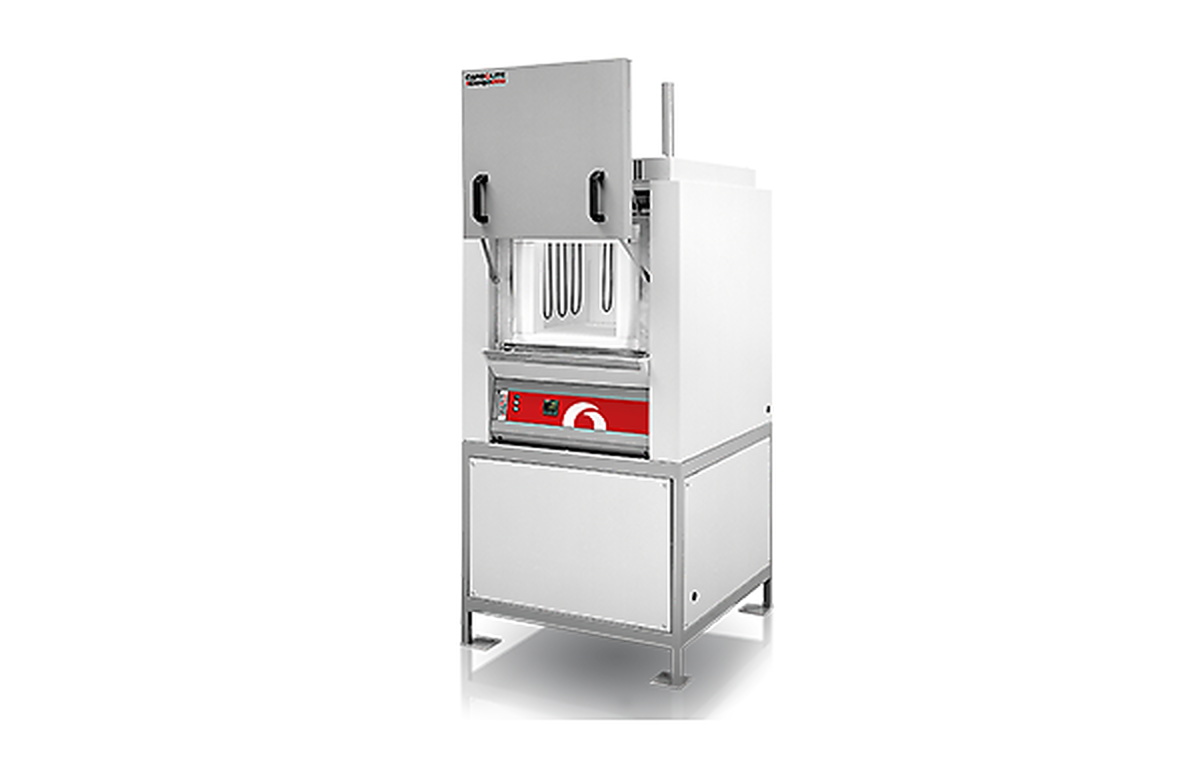

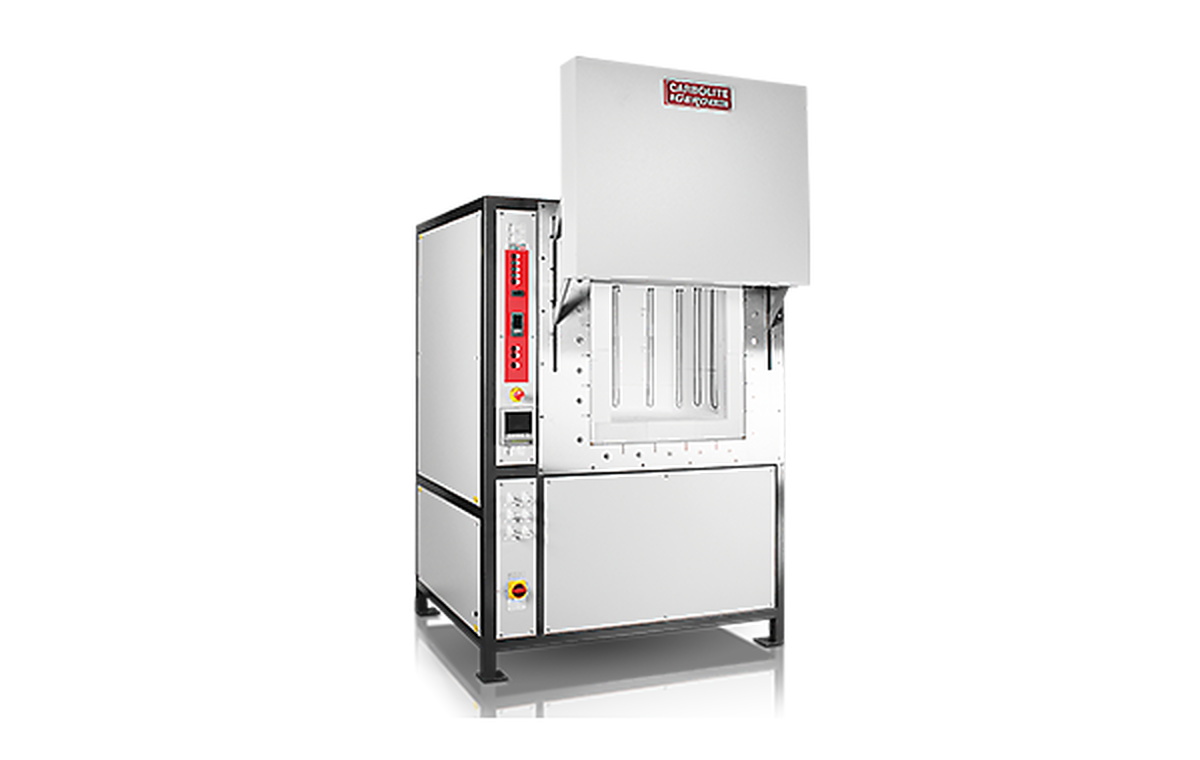

The four smaller models are bench mounted and the larger units are floor-standing. These furnaces may be customised in order to satisfy specific customer requirements, e. g. the addition of debinding options for ceramic binder burn-off applications.
Standard Features:
| Options:
|
Carbolite Gero HTF furnaces may be equipped with debinding and sintering options to accommodate a range of technical ceramic applications A thermally induced decomposition and evaporation of the binder occurs due to gas flow through the HTF furnace during the debinding phase. The gas flow guides vapours to leave the sample.
The sintering of oxide ceramics in an HTF 1700°C or 1800°C furnace is a critical process in materials engineering, essential for achieving optimal mechanical and structural properties in ceramic components. This high-temperature sintering, particularly relevant for materials like alumina and zirconia, optimizes microstructural characteristics, enhancing performance in demanding applications.
High quality MoSi2 heating elements and preheated air inlet.

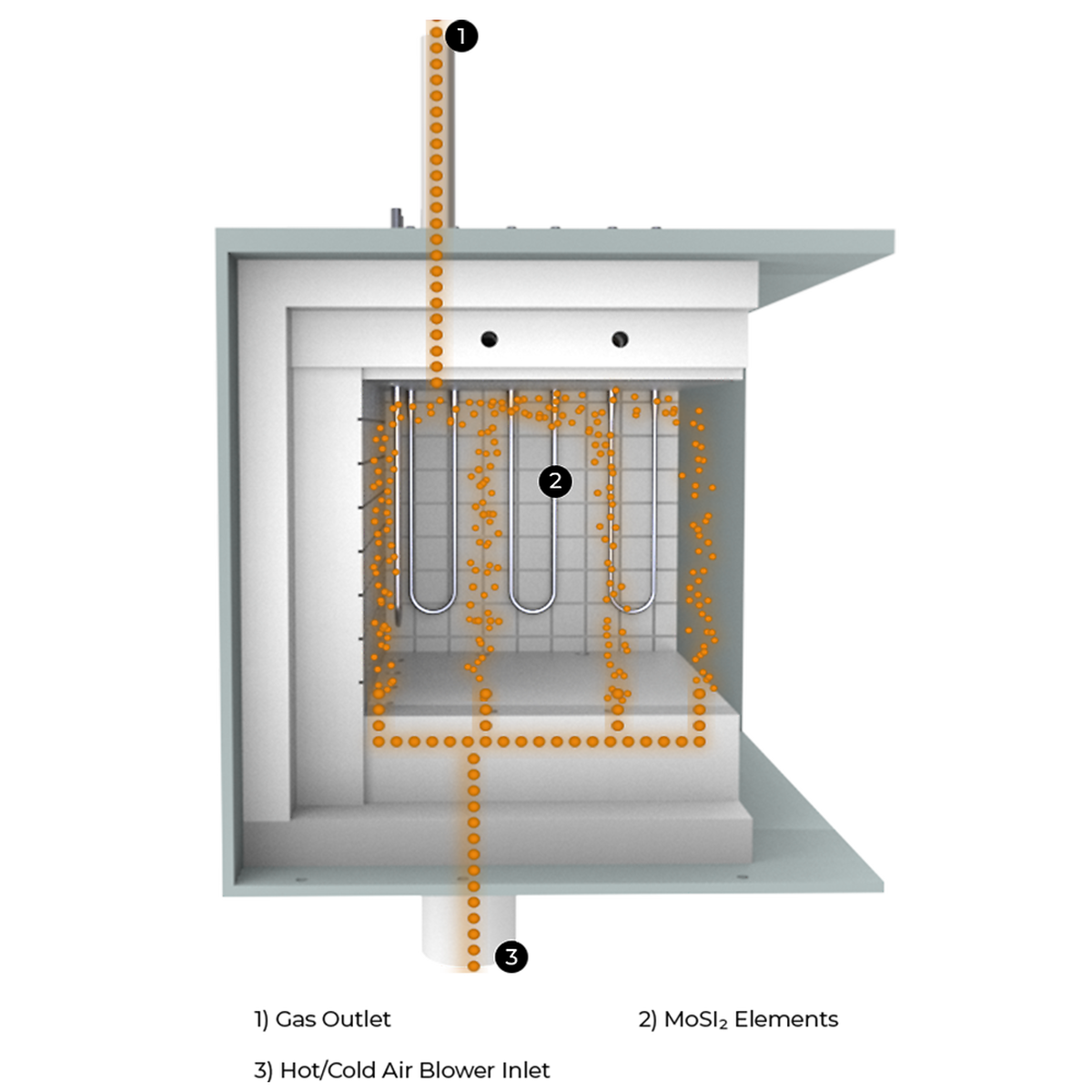

Optimised pre-heated air flow for efficient binder removal.

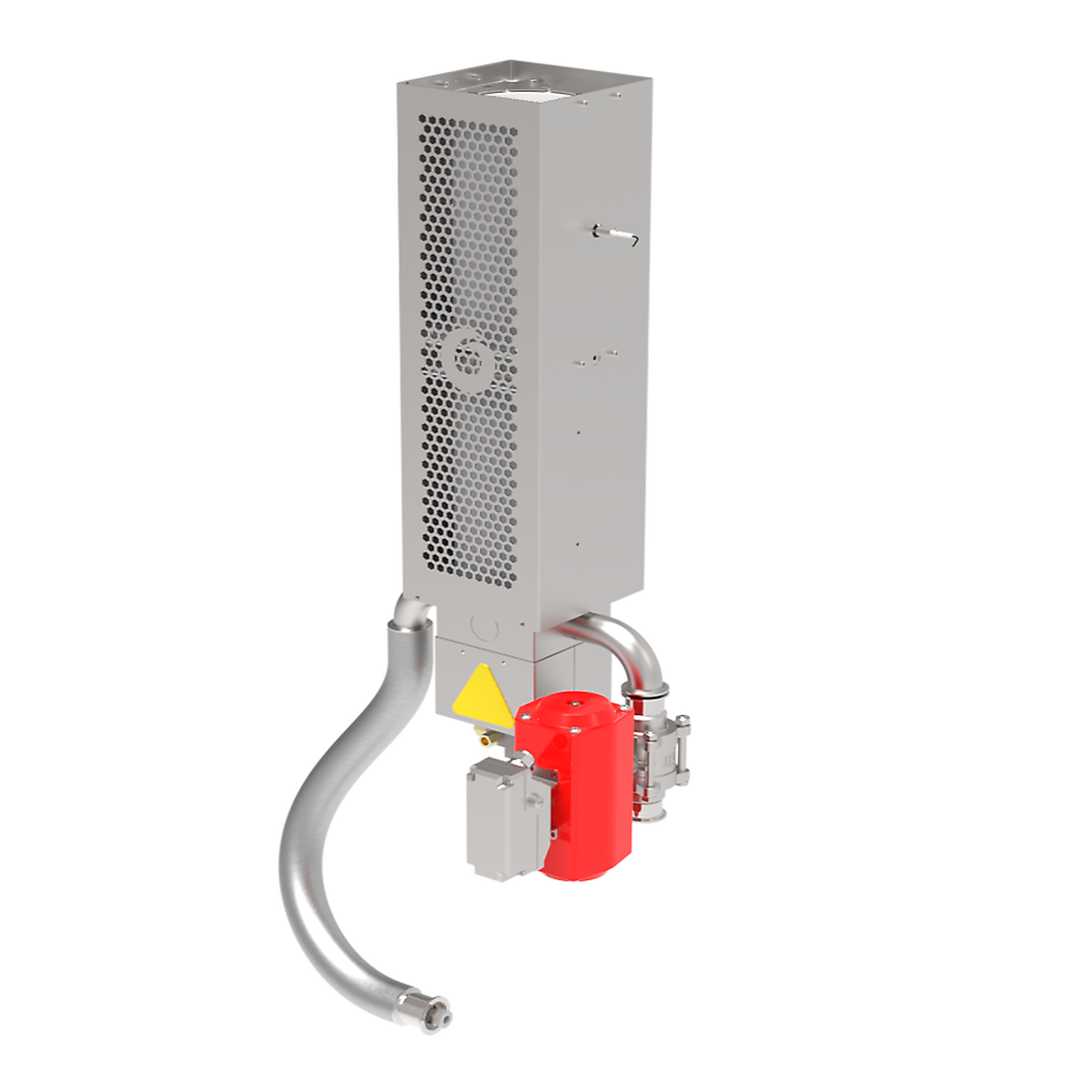

For safe combustion of binder gases an active propane gas afterburner can be provided.
Disclaimer: The information presented shows typical performance. Furnace load ~ 8kg.
Loading: The ceramic is placed on a sintering tray in the HTF furnace, using a tray that withstands high temperatures without reacting with the ceramic.
Ramp-Up: The furnace's temperature is methodically increased to 1800°C, with a controlled profile to prevent thermal shock and ensure even heating, possibly pausing at certain temperatures for stress relief.
Soak: At 1800°C, the ceramic undergoes a critical soak, allowing particles to merge through diffusion, enhancing density and growth.
Cool Down: Following the soak, the furnace cools to room temperature at a rate that prevents thermal stress, avoiding cracks or deformation in the ceramic.

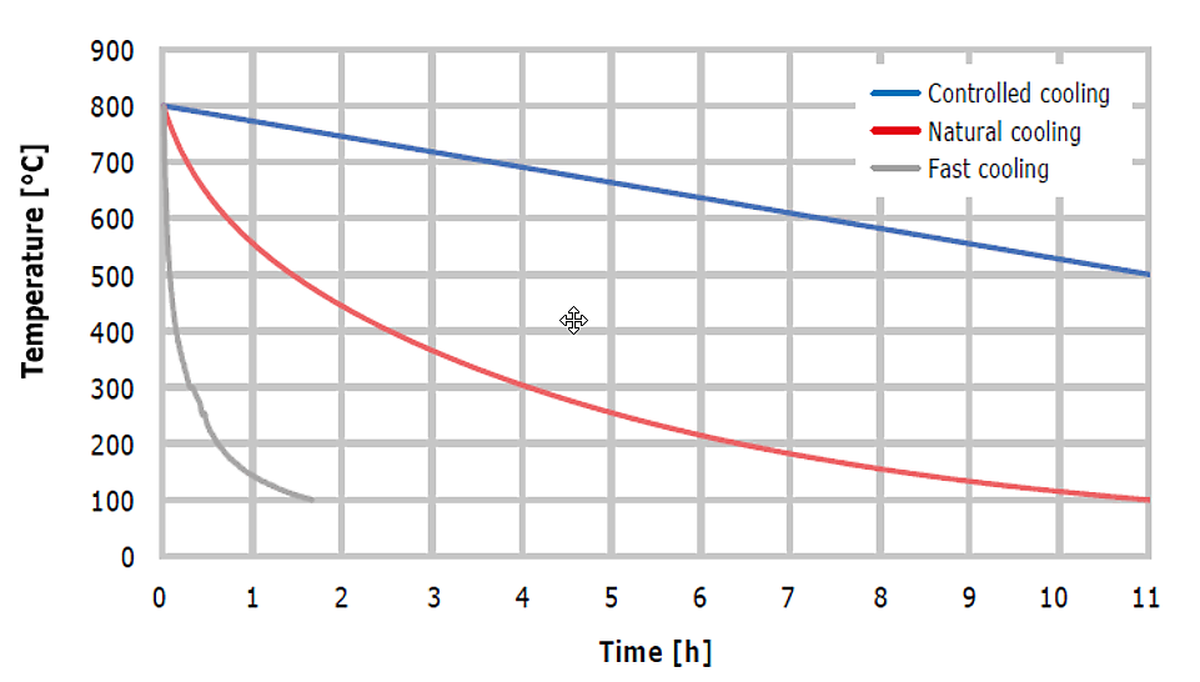

The cool down phase in sintering oxide ceramics, is crucial for maintaining structural integrity and achieving desired properties. By utilising the HTF furnace's pre-heated air inlet blower options the user gains flexibility for their sintering processes. This feature allows precise control of cooling from sintering temperatures (1700 or 1800°C) to room temperature, preventing thermal gradients and associated stresses that could damage the ceramic.
For complex shapes or materials prone to thermal shock, step cooling can be used. With the HTF furnace step cooling can be optimised to minimize thermal stress risks by holding at intermediate temperatures to equalize internal and external temperatures. The HTF furnace can be used to tailor the cool down to each ceramic's needs ensures high-quality components with optimal properties.
During the heat treatment process, the 3D-printed components were treated in the same furnace. The X-shaped sample experienced a weight loss of approximately 6.5%, while the rectangular-shaped sample showed a weight loss of about 11.1%.
The HTF furnaces ensures exceptional temperature uniformity with its advanced design, high-quality elements, and superior thermal insulation for minimal heat loss and even heat distribution.
Advantages of investing in a Carbolite Gero furnace:

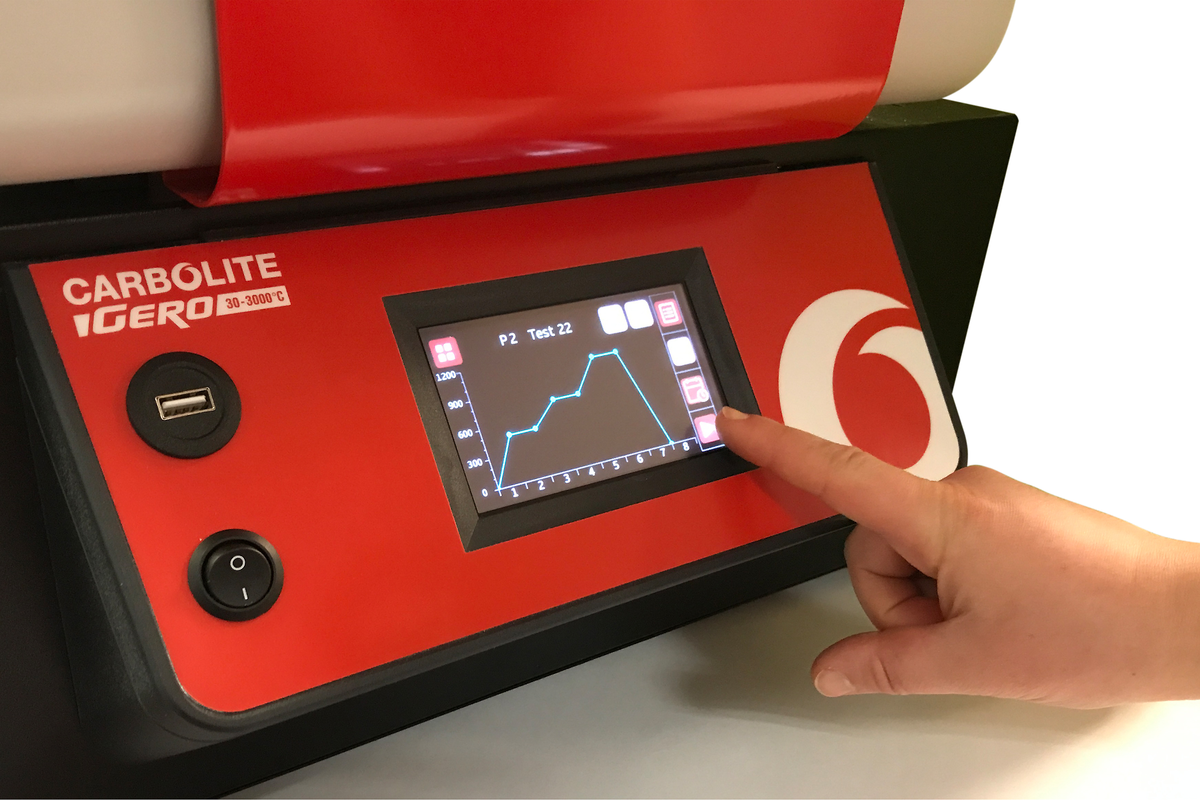

HTF furnaces are equipped with ethernet communications and a programmable controller with 24 segments as standard: :
| 最高温度（℃） | 加热时间(mins) | 尺寸: 内部 高 x 宽 x 纵深 (mm) | 尺寸: 外部 高 x 宽 x 纵深 (mm) 高 (炉门开启时) | 配置 | 体积 (L) | 最大功率 (W) | Digital Ethernet Comms | 热电偶种类 | 重量 (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|
| HTF 17/5 | 1700 | 50 | 158 x 150 x 225 | 565 x 830 x 650 (850) | 台式 | 5 | 4050 | 标准 | B | 109 |
| HTF 17/10 | 1700 | 44 | 232 x 200 x 225 | 565 x 830 x 650 (850) | 台式 | 10 | 5920 | 标准 | B | 133 |
| HTF 18/4 | 1800 | 65 | 140 x 140 x 190 | 565 x 830 x 650 (850) | 台式 | 4 | 4650 | 标准 | Pt20%Rh/Pt40%Rh | 115 |
| HTF 18/8 | 1800 | 56 | 210 x 190 x 190 | 565 x 830 x 650 (850) | 台式 | 8 | 6200 | 标准 | Pt20%Rh/Pt40%Rh | 128 |
| HTF 17/27 | 1700 | -- | 300 x 300 x 300 | 1835 x 900x 1000 (1950) | Floor standing | 27 | 10000 | 标准 | B | 355 |
| HTF 17/64 | 1700 | -- | 400 x 400 x 400 | 2530 x 1150 x 1490 | Floor standing | 64 | 16000 | 标准 | B | 555 |
| HTF 18/27 | 1800 | -- | 300 x 300 x 300 | 1835 x 900x 1000 (1950) | Floor standing | 27 | 1000 | Standard | B | 355 |
| HTF 18/64 | 1800 | -- | 400 x 400 x 400 | 2530 x 1150 x 1490 | Floor standing | 64 | 16000 | Standard | B | 555 |
| HTF _/128 | 1700,1800 | -- | 400 x 400 x 800 | 2000 x 1000 x 1500 | Floor standing | 128 | 40000 | 标准 | B | -- |
| HTF _/165 | 1700,1800 | -- | 550 x 550 x 550 | 2450 x 1400 x 1400 (door open) | Floor standing | 165 | 40000 | Standard | B | -- |
请注意
最高连续使用温度应低于最高温度100℃
升温速率是在温度设定于最高温以下100℃，空载运行的情况下测量。
加热元件与氧化锆之间可能产生化学反应会使氧化锆样品变色。我们可提供工艺指导或更换其他型号的加热元件，具体请向我们咨询。
保留技术变更和出错的权利
排胶和烧结工艺是去除有机粘合剂和使陶瓷工件致密化的必要条件
Modern Solutions for Safe Debinding of Ceramic Parts CARBOLITE GERO has developed sophisticated safety concepts for safe debinding of ceramic parts.
The 1700 & 1800°c furnace range, designed for precision and performance, excels in processes like sintering, annealing, and calcination. Built with top-notch materials and incorporating advanced thermal technology, it ensures uniform heat distribution, optimal temperature control, and durability. Ideal for sectors such as ceramics, metallurgy, and electronics, it meets diverse research, quality control, and production needs.
Featuring high-quality molybdenum disilicide heating elements and advanced thermal insulation, the furnace range achieves excellent temperature uniformity, quick heat-up and cool-down rates, while reducing energy consumption. These components contribute to the furnaces' efficiency and consistent heating capabilities, ensuring low external case temperatures and longevity.
1700 & 1800°C furnaces offer customization for specific requirements, including debinding options for ceramic binder burn-off. Available in both bench-mounted and floor-standing models, each furnace can be tailored for precise technical needs, providing flexibility and precision for various applications.
1700 & 1800°C furnaces have programmable controllers, over-temperature protection, and fan cooling for safety and ease of use. Options include sophisticated digital controllers, inert gas inlets, solenoid valves, and fast cooling. These features facilitate user-friendly operation, safety, and adaptability for a wide range of processes.
Equipped with debinding and sintering options, including pre-heated air flow and gas flame afterburners, these furnaces support thermal decomposition and evaporation of binders during debinding. This capability, along with precise temperature control during sintering, optimizes the mechanical and structural properties of ceramics, ensuring high-quality outcomes for technical ceramic applications.
