碳纤维连续热处理

碳纤维（石墨纤维）是现代高科技应用材料。纤维直径约5-10微米，主要由碳原子构成。Carbolite Gero为碳纤维的研发和生产主要提供三种型号的炉子。

排胶脱脂温度高达 800°C

碳纤维前体放入管式炉的金属工作管中，在通过逆流法兰的惰性气氛下进行脱脂处理。

预烧结温度高达1300°C

置入管式炉的陶瓷工作管中，碳纤维的预烧结温度高达1300°C。

高温烧结温度高达2200°

加热温度达到1800℃以上，需要配备水冷装置的石墨炉高温烧结碳纤维，最高温度可达2200℃。

多组纤维材料同时加热处理

一台炉子同时可以加热最多4组碳纤维。

卡博莱特盖罗用户订制的马弗炉和烘箱 范例

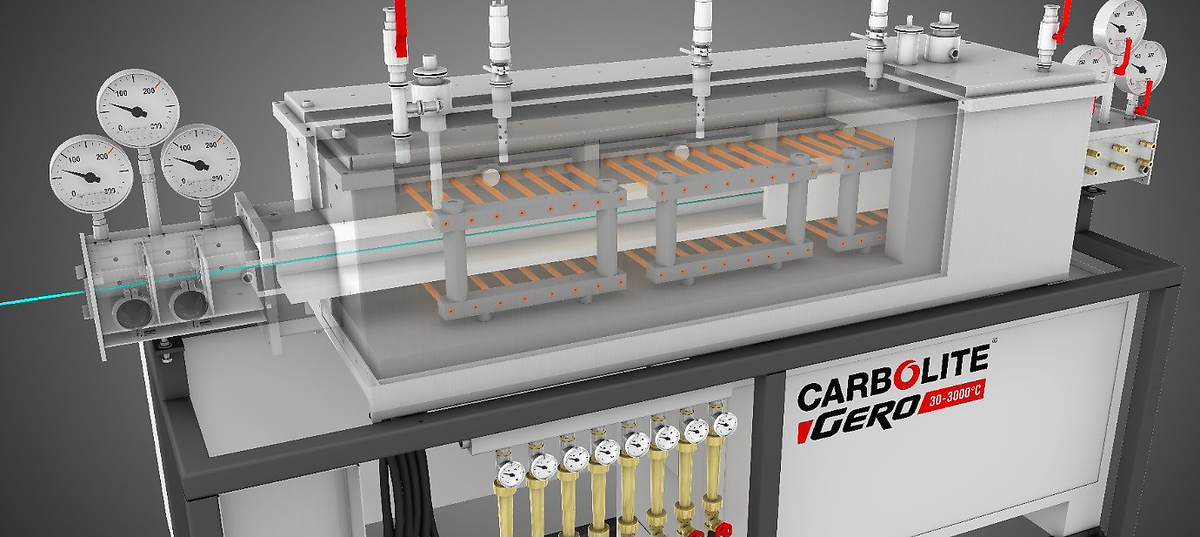

Interior view of custom designed tube furnace up to 2200 °C, with integral compact frame including gas and water supply, separate temperature controller cabinet and flanges for inert gas counter flow, for open operation during inert gas heat treatment of four carbon fibres under inert gas atmosphere. Supplied with separate control cabinet.

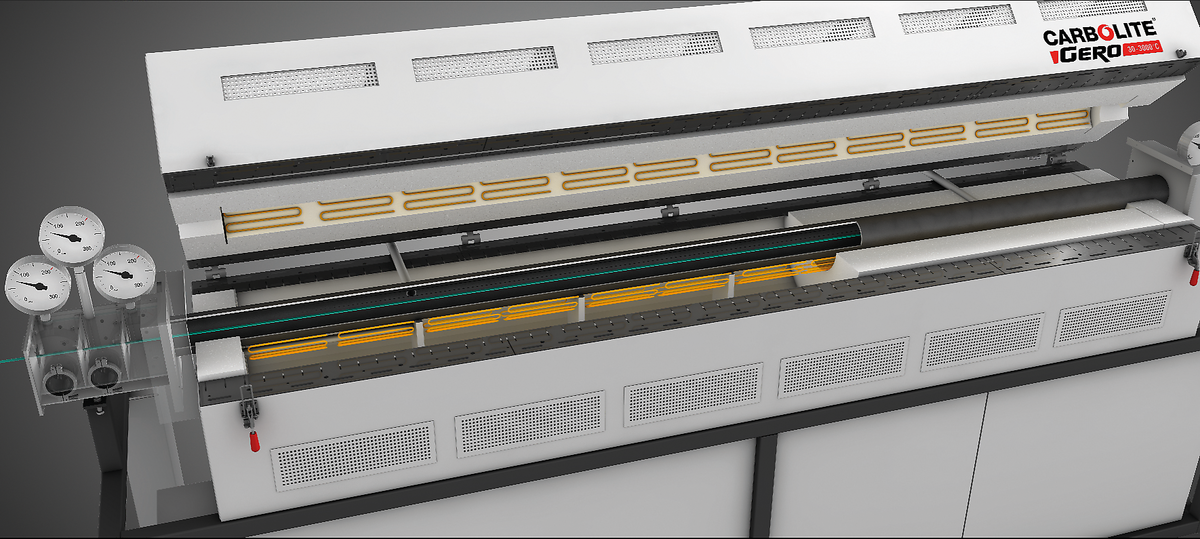

Interior view of custom designed 6-zone FZS 13/100/3000 up to 1300°C with 3000 mm heated length and counter flow flanges for inert gas counter flow for open operation during inert gas heat treatment of four carbon fibres under inert gas atmosphere. Supplied with separate control cabinet.

Interior view of custom designed tube furnace up to 2200 °C, with integral compact frame including gas and water supply, separate temperature controller cabinet and flanges for inert gas counter flow, for open operation during inert gas heat treatment of four carbon fibres under inert gas atmosphere. Supplied with separate control cabinet.

Interior view of custom designed 6-zone FZS 13/100/3000 up to 1300°C with 3000 mm heated length and counter flow flanges for inert gas counter flow for open operation during inert gas heat treatment of four carbon fibres under inert gas atmosphere. Supplied with separate control cabinet.

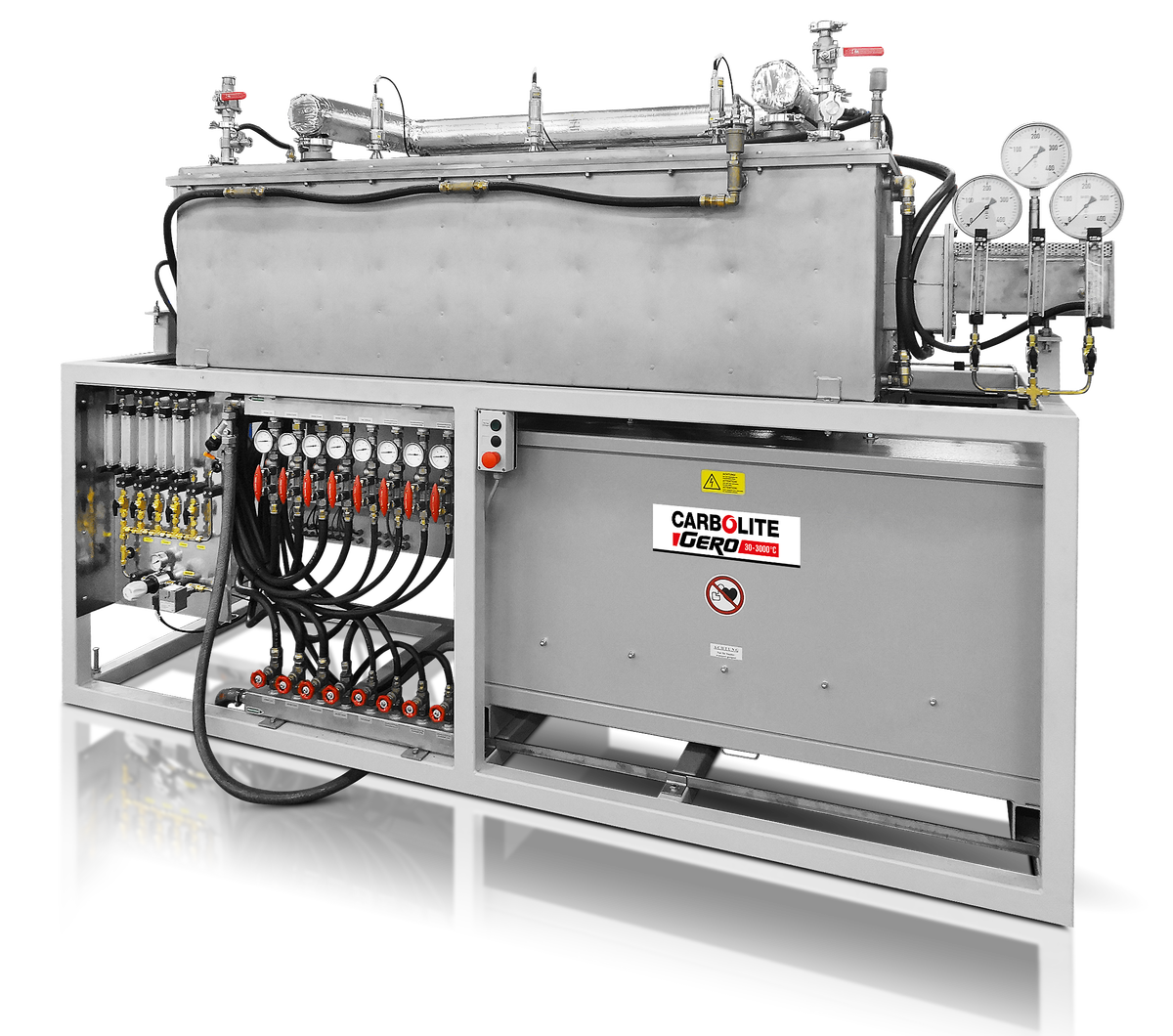

Custom designed manually controlled horizontal graphite heating and insulated tube furnace up to 2200 °C, with integral compact frame including gas and water supply, separate temperature controller cabinet and flanges for inert gas counter flow for open operation during inert gas heat treatment of four carbon fibres under inert gas atmosphere. Supplied with separate control cabinet.
用户定制的6区控温FZS 13/100/3000管式炉，加热长度3000mm及逆流法兰，4组碳纤维能同时在惰性气氛下热处理，独立的控制柜。

Custom designed manually controlled horizontal graphite heating and insulated tube furnace up to 2200 °C, with integral compact frame including gas and water supply, separate temperature controller cabinet and flanges for inert gas counter flow for open operation during inert gas heat treatment of four carbon fibres under inert gas atmosphere. Supplied with separate control cabinet.

用户定制的6区控温FZS 13/100/3000管式炉，加热长度3000mm及逆流法兰，4组碳纤维能同时在惰性气氛下热处理，独立的控制柜。

Custom designed 8-zone vertical split tube furnace model HTRV-A 16/100/4000 up to 1600°C with 4000 mm heated length. For debinding and sintering of fibres under inert gas atmosphere. The fibres are introduced into the furnace from an inert gas glove box.

Custom designed 8-zone vertical split tube furnace model HTRV-A 16/100/4000 up to 1600°C with 4000 mm heated length. For debinding and sintering of fibres under inert gas atmosphere. The fibres are introduced into the furnace from an inert gas glove box.

保留技术变更和出错的权利
